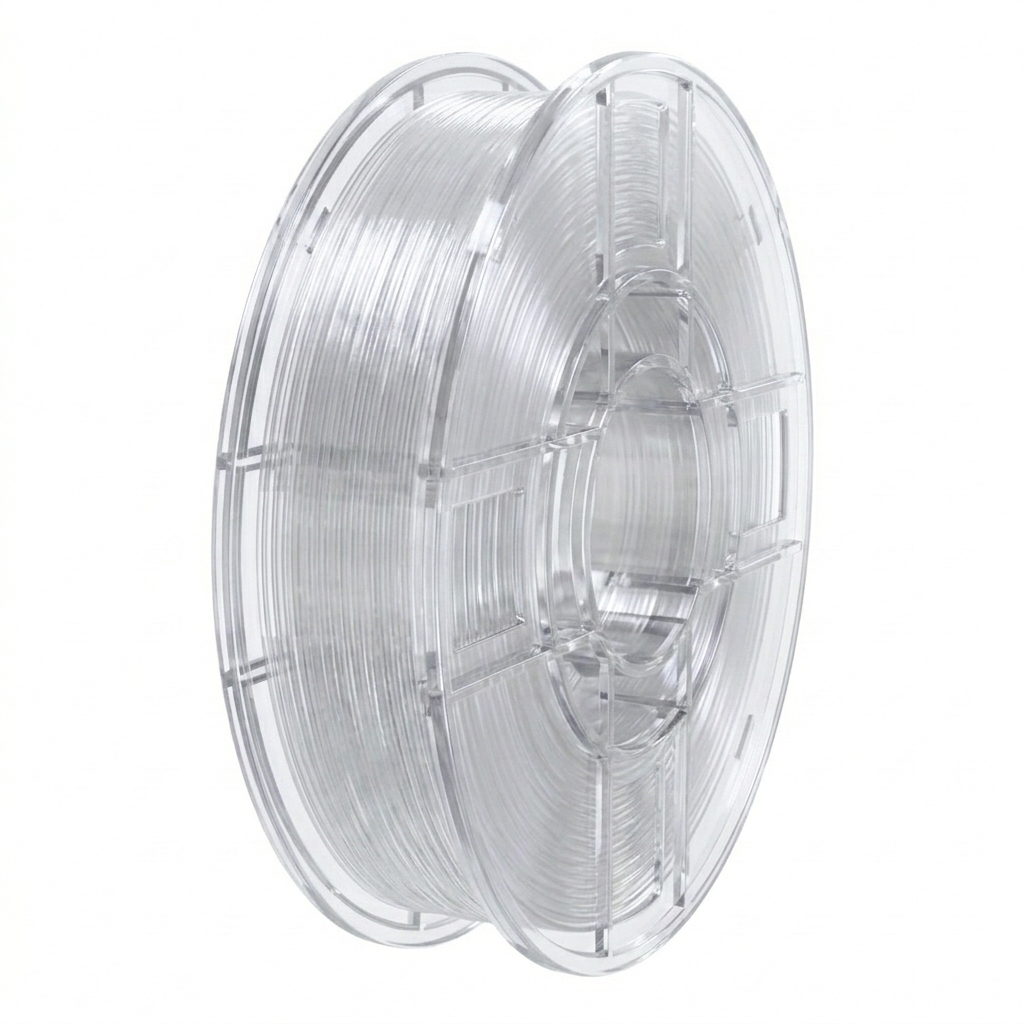

Medical-Grade PA Filament

Short Description:

The medical PA 3D printing filament is manufactured from medical-grade nylon raw materials. It features high strength, high toughness, fatigue resistance, wear resistance, and excellent resistance to body fluid corrosion. It boasts good biocompatibility, outstanding dimensional stability, and excellent thermoforming performance. Its mechanical strength remains stable over the long term, and it resists deformation and aging during prolonged use. This product is widely used in applications such as bone repair guides, load-bearing orthopedic accessories, minimally invasive interventional consumables, and precision medical structural parts.


  • Filament diameter: 1.75±0.05mm

Product Detail

Medical PA Filament Applications

3D printed customized orthopedic external fixators, posterior spinal connecting rods, joint replacement osteotomy guides, non-absorbable trauma internal fixation plates, rehabilitation orthoses, wheelchair components, and structural parts for surgical robots.

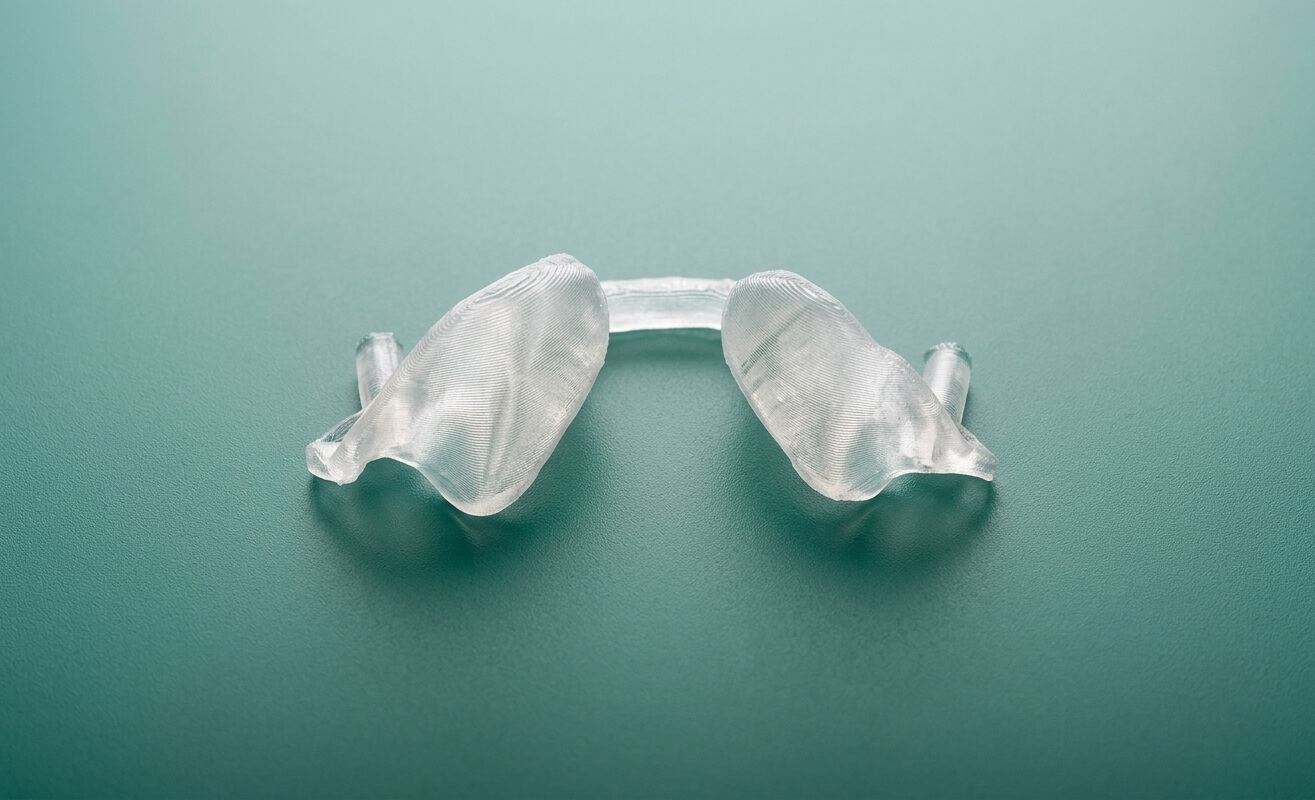

Medical PA Filament Printed Model:

Medical-grade PA filament printing model



Medical PA Filament Print Settings
Diameter 1.75±0.05mm
Recommended Print Temp 290℃±5℃
Bed Temperature 110℃
Chamber Temp / Cooling 100% Cooling Fan
Print Speed 50mm/s
Volumetric Flow Rate 2-8mm³/s
Printer Requirement Enclosed printer required
