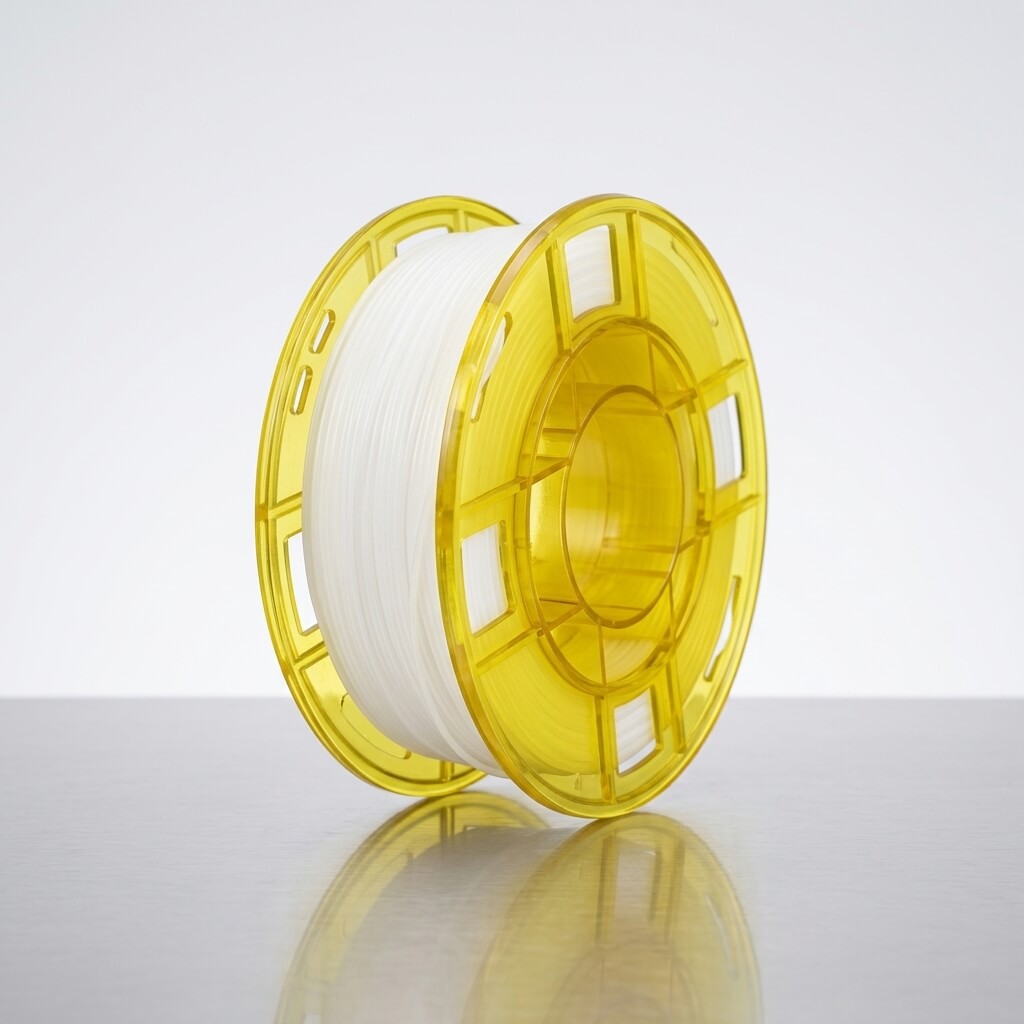

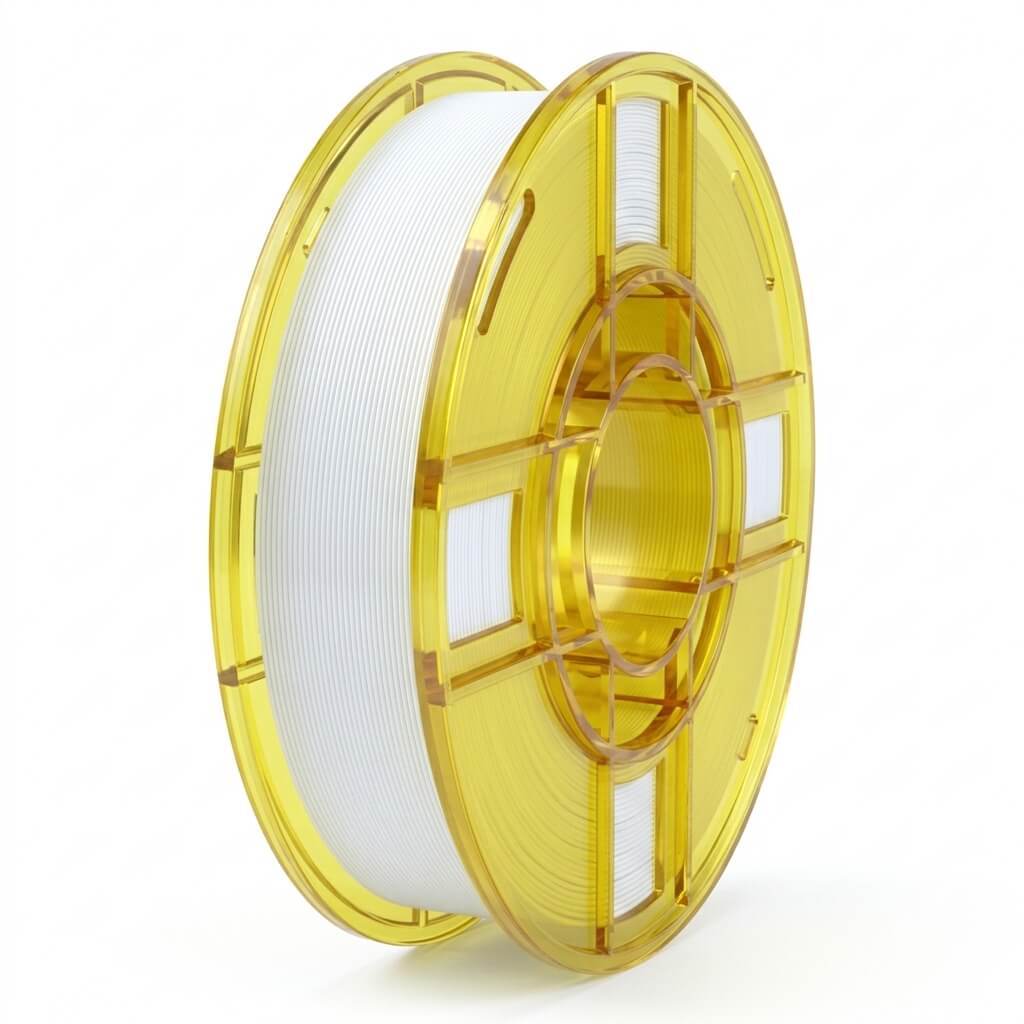

Medical-Grade PCL/HA Filament

Short Description:

Medical-grade PCL/HA (40%) composite 3D printing filament is formulated with high-purity medical-grade polycaprolactone as the matrix and uniformly incorporates 40 wt% hydroxyapatite (HA). Specifically designed for FDM additive manufacturing, the product combines the flexibility of PCL with the osteoconductive activity of HA, offering excellent biocompatibility and safe, metabolizable degradation products.


  • Filament diameter: 1.75±0.05mm
  • Intrinsic Viscosity (IV): 0.8
  • Inorganic Phase Content (HA): 40±5%
  • Recommended Print Temp: 105℃±5℃
  • Bed temperature: 40℃

Product Detail

Medical-grade PCL/HA (40%) composite 3D printing filament is formulated with high-purity medical-grade polycaprolactone as the matrix and uniformly incorporates 40 wt% hydroxyapatite (HA). Specifically designed for FDM additive manufacturing, the product combines the flexibility of PCL with the osteoconductive activity of HA, offering excellent biocompatibility and safe, metabolizable degradation products. It features high diameter precision, reliable batch-to-batch consistency, and a low printing temperature window for smooth extrusion. Suitable for rapid fabrication of bone tissue engineering scaffolds, personalized surgical guides, and absorbable implants, this filament provides a safe and controllable additive manufacturing solution for bone defect repair.

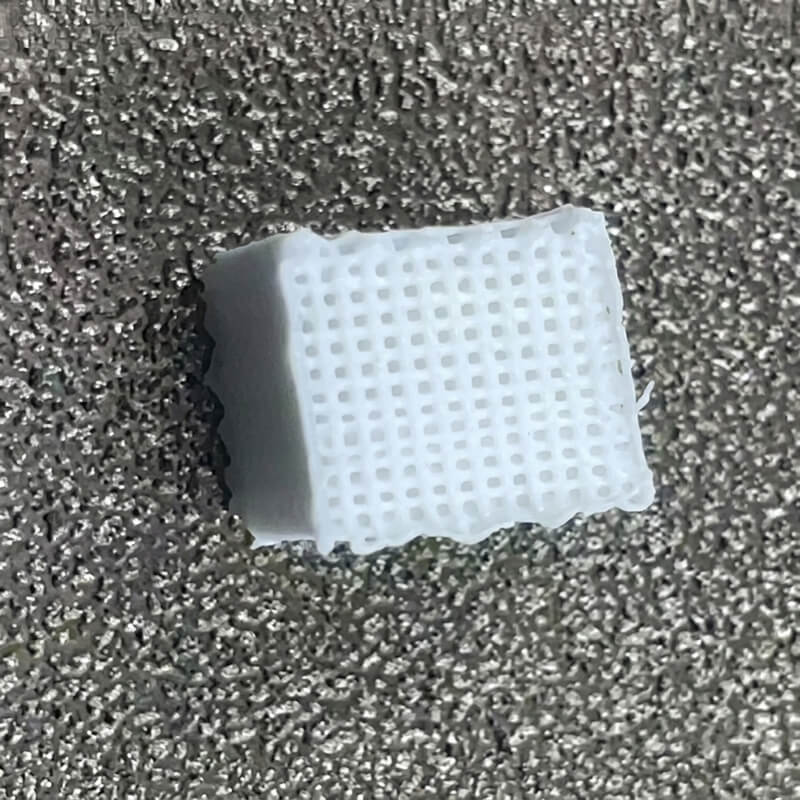

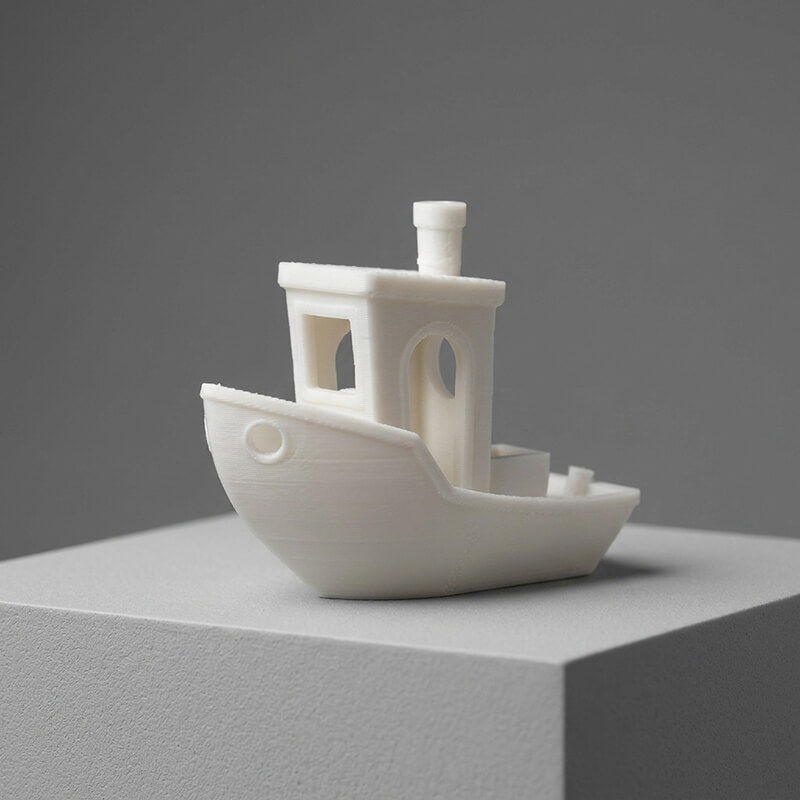

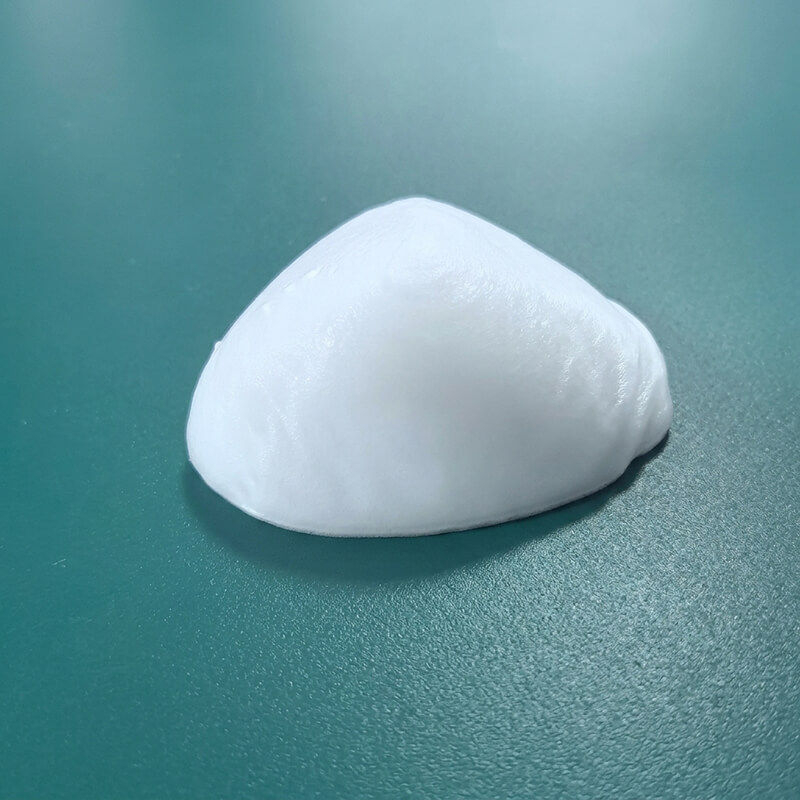

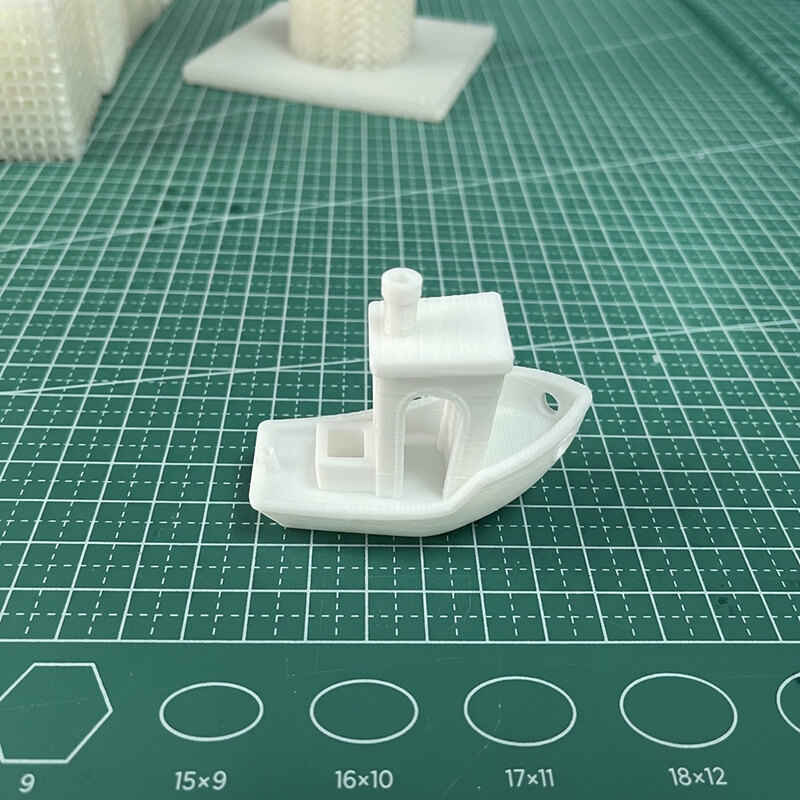

Medical PCL Filament Printed Model:

Medical-grade PCL-HA printed model1Medical-grade PCL-HA printed model2Medical-grade PCL-HA printed model3Medical-grade PCL-HA printed model4



Medical PCL+HA Filament Specifications
Intrinsic Viscosity (IV) 0.8
Inorganic Phase Content (HA) 40±5%
Diameter 1.75±0.05mm
Recommended Print Temp 105℃±5℃
Build Plate Temp 40℃
Cooling Cooling fan 100%
Printing Speed 50mm/s
(Higher speeds require increased printing temperature)
Volumetric Flow Rate Recommended 2mm³/s
Recommended Printer H2S or similar models
(Printers with optimized extruder cooling are highly recommended)
